One Man Lift
|
(click for larger image)
|
One Man Lift
Style # 130-0050

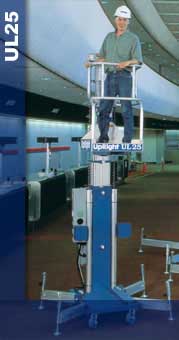

Upright UL 24 lift is similar to photo of UL25. Has a 24' platform with a 30' working height. Weight capcity is 300#. Battery operated hydraulic lift. Rolls around for easy moving and fits on a small trailer or in the back of a pick-up to transport.
UpRight UL24 Push Around Specifications
Max. working height A 30ft.
Max. platform height B 23ft. 10in
Platform capacity (SWL) 300lb.
Outrigger footprint:
Width C x Length D
59in. x 53in.
Platform size 26in. x26in.
Stowed dimensions:
Length E
Height F
Width G
49.5in.
78.3in.
29in.
Wall access -
distance from front of platform to wall 4in.
Gross weight: AC 770lb
Gross weight: DC 810lb
Power source 1 x 12V 105 Ah battery or
120/220V Ac 60Hz
|
|
