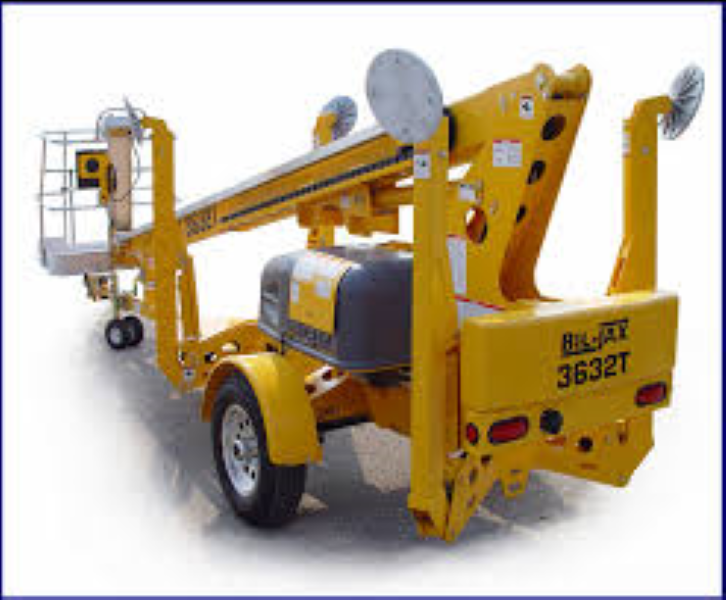

Bil-Jax 3632T Towable Lift
|
(click for larger image)
|

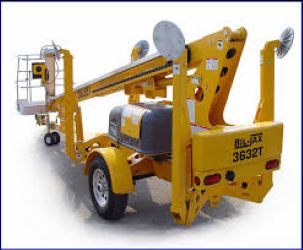

Bil-Jax 3632T Towable Lift
Style # 130-0110
Access on the move. Hydraulic outriggers and automatic leveling allow operation in under 30 seconds.
Superior combination of industry leading capacity and outreach. Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed.
Exceptional productivity
Working height 43 ft 6 in
Platform height 37 ft 6 in
Horizontal outreach (from centerline) 32 ft
Horizontal outreach (from edge of footpad) 27 ft
Up and over height N/A
Lift capacity 500 lbs
Length - stowed 22 ft 8 in
Width stowed 5 ft 6 in
Height stowed 6 ft 6 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib - length N/A
Jib - Vertical Motion N/A
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
|
|
