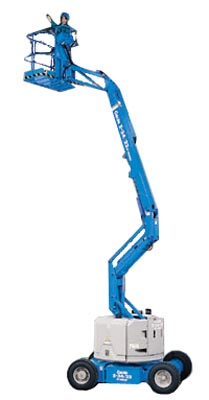

Genie 34' 4x4 RT Lift
|
(click for larger image)
|
Genie 34' 4x4 RT Lift
Style # 130-0151
Genie Z34/22 lift gives you a 34' work platform with a 40' working height. Side reach is 22'. Unit is dual fuel using gas or propane for inside use.
A new drive system provides the smooth control, durability and efficient power transmission required for rough terrain operation.
Two-speed hydraulic motors provide optimum speed and torque. The 4WD model operates at 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 45% gradeability.
Zero tailswing and nose swing in all positions, with 73 in (1.85 m) wide 4WD model, provide excellent maneuverability in confined areas.
Dual parallelogram riser allows ascent and descent along a vertical plane without retraction or extension of the boom.
Standard Features
40 ft 10 in (12.62 m) working height
22 ft 3 in (6.78 m) horizontal reach
Compact 73 in wide (1.85 m) 4WD model
500 lb (227 kg) platform capacity
4 ft (1.22 m) jib features 139° working range
Dual wheel spring-applied brakes
Fully proportional controls
180° powered platform rotation
Auxiliary power unit
Drive enable system
Self-leveling platform
Water, oil and voltage gauges
AC wiring to platform
|
|
