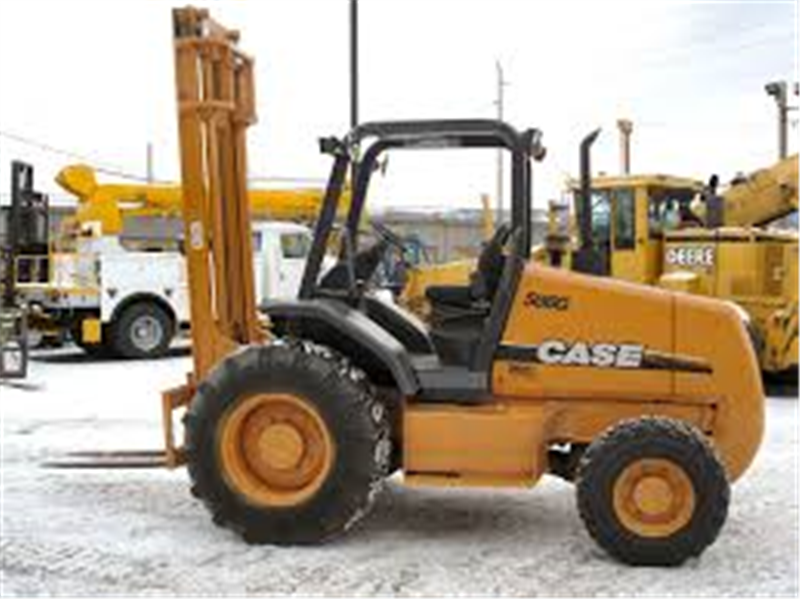

Case 6k Forklift 4x4
|
(click for larger image)
|
Case 6k Forklift 4x4
Style # 130-0205
With industry-leading speed, ease of operation and zero tail swing, Case rough-terrain forklifts meet the most demanding applications head on. The rugged engine and powertrain exceed the tractive force needed to work in the mud or on hillsides. Load control provides smooth operation and minimal chain stress
Gross Power rated 85 hp
@ 2200 rpm
Net power rated 80 hp (60 kW) @ 2200 rpm
Transmission - type Sncromesh
Max travel speed, fwd 25 mph
Max lift @ 24 inch center 6,000 lb (2 722 kg)
Max fork height for max lift capacity 15' 0''
Lifty capacity at 15 feet 3,000 lb
Overall height, mast raised 25' 2''
Overall height, mast lowered 10' 7''
Height to top of cab 8' 8''
Turning radius at curb, brakes off 15' 8.5''
Operating weight 14,337 lb
|
|
